Terry Knight
The Reserve
Windmill Hill is a Site of Special Scientific Interest situated in
south-east Worcestershire in the parish of North and Middle Littleton at grid
reference SP 070472. It consists of a half mile long west facing escarpment of
the Rhaetic and Mercian Mudstone beds with a base rich topsoil. The bottom 20 to
25 metres is now mature hawthorn scrub with some ash Fraxinus excelsior
and field maple Acer campestre. Above this is grassland, generally about
60 metres in width, dominated by tor-grass Brachypodium pinnatum.
Management
The site was formerly grazed but for forty years or more prior to 1979 it
was managed only by irregular burning of the grass. This was insufficient to
prevent invasion of scrub and allowed what was originally the bottom hedge to
expand into the present belt of mature hawthorns. It probably also accounts for
the dominance of tor-grass. When the Worcestershire Wildlife Trust purchased the
site for a nature reserve in 1979 its first priority was to reintroduce grazing
to slow down scrub invasion and to try to control the tor-grass. Most of the
grassland has now been fenced to give five end-to-end paddocks. Three of these
were first grazed in 1982, a fourth in 1993 and the fifth remains ungrazed at
present. Sheep have been used for grazing up to now, usually in the winter and
spring, but in eight of the twenty two seasons there was no appreciable grazing.
Experiments were carried out in 1998 and 1999 on three sets of small sample
plots of grassland. One of these was in a species poor / tor-grass dominant
area, the second in a herb rich / tor-grass scarce area and the third in an
intermediate area. The plots in each set were subjected to various degrees of
'hand grazing' over the two seasons. From the results of this it was decided to
increase the severity of grazing in the paddocks between autumn and spring where
this was practical. Despite this, hawthorn continues to invade the paddocks, at
a substantial rate at the bottom, and requires to be removed by hand on a four
or five year rotation. Some smallish areas of more permanent scrub exist in the
ungrazed paddock.
Recording
Out of interest, in 1973 and 1974 most of the field garlics Allium
oleraceum and wild orchids were mapped. The wild orchids included bee Ophrys
apifera, common spotted Dactylorhiza fuchsii, greater butterfly Platanthera
chlorantha, pyramidal Anacamptis pyramidalis and twayblade Listera
ovata. When the site became a nature reserve in 1979 it was decided to try
to map all six as thoroughly as possible each year. All are perennial
monocotyledons and have their growing point below ground and hence protected
from grazing although the leaves and inflorescences are vulnerable. Each species
occurs in modest numbers and is not too difficult to find, particularly when in
bud or flower, making mapping not too onerous a task. The coverage has been
fairly good but in some years the reserve was grazed in the summer making
mapping impractical. Over recent years rabbit grazing in the summer has extended
further into the paddocks. This has probably slightly reduced the number of
orchids spotted, particularly in the centre paddock. In a few other years time
available, and occasionally enthusiasm, was insufficient to provide full
coverage. Where only partial coverage was achieved an adjustment has been made
in some cases to estimate the likely yearly total. The results from 1981 have
been used as this is the year prior to the introduction of grazing. These are
given in Table 1.
|
Actual number |
Adjusted number |
Split |
|||||
|
Field garlic |
Bee Orchid |
Other orchids |
Field Garlic |
Bee Orchid |
Other Orchid |
Other un-grazed |
Other grazed |
Year |
|
|
|
|
|
|
|
|
1981 |
22 |
132 |
204 |
22 |
132 |
204 |
43 |
161 |
1982 |
11 |
151 |
147 |
11 |
151 |
193 |
53 |
140 |
1983 |
|
97 |
233 |
25 |
97 |
291 |
104 |
187 |
1984 |
|
|
98 |
25 |
88 |
175 |
36 |
139 |
1985 |
111 |
79 |
174 |
111 |
79 |
232 |
26 |
206 |
1986 |
|
18 |
402 |
30 |
18 |
457 |
84 |
373 |
1987 |
5 |
|
122 |
5 |
62 |
265 |
28 |
237 |
1988 |
190 |
106 |
861 |
190 |
106 |
861 |
158 |
703 |
1989 |
152 |
98 |
366 |
152 |
98 |
402 |
92 |
310 |
1990 |
569 |
86 |
191 |
569 |
86 |
191 |
101 |
90 |
1991 |
36 |
73 |
243 |
36 |
73 |
328 |
22 |
306 |
1992 |
18 |
27 |
285 |
18 |
27 |
452 |
11 |
441 |
1993 |
140 |
68 |
572 |
140 |
68 |
572 |
113 |
459 |
1994 |
75 |
5 |
199 |
75 |
5 |
362 |
54 |
308 |
1995 |
398 |
32 |
487 |
398 |
32 |
694 |
113 |
481 |
1996 |
5 |
1 |
172 |
5 |
1 |
344 |
48 |
296 |
1997 |
|
4 |
188 |
100 |
4 |
272 |
35 |
237 |
1998 |
45 |
8 |
305 |
45 |
8 |
693 |
83 |
610 |
1999 |
89 |
22 |
492 |
89 |
22 |
541 |
35 |
506 |
2000 |
|
10 |
440 |
150 |
10 |
440 |
42 |
398 |
2001 |
564 |
6 |
906 |
564 |
6 |
906 |
82 |
824 |
2002 |
1025 |
4 |
847 |
1025 |
4 |
847 |
50 |
797 |
Table 1. Number of plants per year
Field Garlics
This is a species of dry grassy banks and although the inflorescence
consists of flowers and bulbils it rarely produces seed. New plants therefore
usually arise from the bulbils falling to the ground and propagating. This is
probably assisted on the reserve by the ground shrinking significantly in the
summer to produce substantial cracks for bulbils to fall into. They are usually
scattered but groups of closely spaced plants do occur in places from time to
time. Few records are made from the flatter upper half of the site, most come
from the steepest slopes just below the middle path with others on some of the
somewhat less steep slopes below. Unfortunately, this makes recording a bit more
difficult. As the grass in most places on the reserve is reasonably long in the
late spring and summer it is only practical to record around mid July when the
inflorescence is well developed. Consequently only flowering plants have been
recorded. In scattered locations groups of 25 to 100 flowers come up
spontaneously or over a period of one or two years and then disappear just as
quickly. A group may then have a similar resurgence and decline in the same spot
a few years later. Whether this sporadic appearance applies to the plants
themselves or just the flowers is not known.
From Table 1 it can be seen that the numbers vary considerably from year to year. The maximum number recorded was 1025 in 2002. A graph of the adjusted numbers is given in Figure 1. From this, the trend line indicates an annual increase in numbers over the 22 seasons of 12% with derived figures of 18 in 1981 and 200 in 2002. However, as the results are so variable this needs to be treated with a bit of caution. The numbers occurring in the ungrazed paddock are too small to draw any comparison between it and the grazed paddocks other than the numbers appear to be less and the increase small or non-existent.

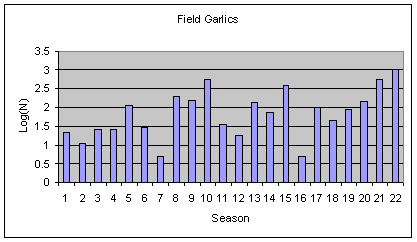

Fig. 1. Garlics in all paddocks 1981 to 2002
Bee Orchids
The plants have occurred in three main colonies at the top of the reserve
with an occasional plant elsewhere. They tend to be fairly short-lived
wintergreen perennials and are normally self-pollinating. Numbers vary
considerably from year to year as can be seen from Table 1. Basal leaves first
appear in October and continue to appear up to April when they begin to shrivel
and die off. Stem leaves and the inflorescence develop in May and June with
flowering in July and seed dispersal in August by which time all leaves have
shrivelled. Seed is abundant but very light and easily transported away from the
reserve by the wind. Where the grass is short they are best recorded in April
when the basal leaves are most developed but in long grass it is necessary to
wait until the flowers appear. As the main leaves are at their best only in the
winter and early spring then this species is likely to be more affected by
winter grazing than the other five species. A detailed study carried out between
1975 and 1983 found that, when ungrazed, individual plants could survive at
least seven years and flower up to four times.
The adjusted plant numbers recorded each year are plotted in Figure 2. This indicates an annual decline rate of 18% with derived figures of 197 in 1981 and 5 in 2002. No plants have been found in the ungrazed paddock since 1973 so no comparison can be made between grazed and ungrazed paddocks.

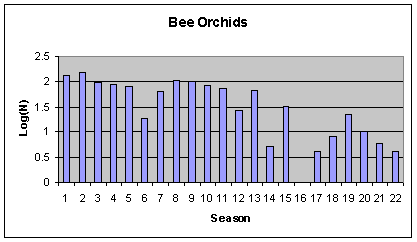

Fig. 2. Bee Orchids in Grazed paddocks 1981 to 2002
Detailed recording of the flowers from 1975 to 1983 showed much variation in lip pattern. Lang (2001) illustrated the basic flower type together with eight recognised variations. None of these recognised variations has been found on the reserve even though up to two-thirds of the flowering plants in a colony had at least one flower in which the lip was significantly different to the basic flower type. Occasionally an abnormal flower has been found. In 1979 one flower was found with the lower half of the left-hand sepal joined to the right-hand half of the lip with the left-hand petal missing. Three flowers on separate plants had abnormal petals in 1981. In one the left-hand petal was replaced by an additional inward facing column with viscidia. The other two had petals deformed such that the petal base resembled the base of a column with viscidia, but the petal apex was almost normal except for ending in three blunt points. One of the two had both petals deformed this way and the other just the left-hand one. All three had normal lips. The degree of variation in flowers of the colonies may indicate that the plants were subject to some sort of stress other than grazing which has contributed to their decline.
Other Orchids
Of the four other orchids only pyramidal is wintergreen. It is usually found
in the upper half of the reserve. Like the bee orchid its main leaves start to
appear in October and are all above ground by April. However, they are less
likely to shrivel in the spring but usually last well into the summer making
this species likely to be less affected by winter grazing than the bee orchid.
It flowers in July and like the other orchids produces an abundance of light-
weight seed that is easily transported away by the wind. As its leaves are very
grass-like it is only practical to record it when it is in bud or flowering. The
leaves of the other three orchids appear in early May and so are not affected by
winter grazing. They flower in June and can be found anywhere in the paddocks
although common spotted and twayblade seem to prefer the bottom half. Recording
of these three can usually be carried out any time from when the main leaves
have emerged until the end of flowering. An attempt has been made to identify
individual plants of these species to check for longevity. The record for the
site of one isolated plant of each is given in Table 3. This seems to indicate
that common spotted survives for at least 14 years, greater butterfly at least 9
but possibly 19 years, pyramidal and twayblade probably at least 13 years.
|
Common Spotted |
Greater Butterfly Orchid |
Pyramidal Orchid |
Twayblade |
||||
Ref No |
19I |
|
63H |
|
71J |
|
56G |
|
Year |
|
|
|
|
|
|
|
|
1981 |
a |
u |
a |
u |
a |
u |
P |
u |
1982 |
P |
u |
a |
u |
a |
u |
a |
g |
1983 |
P |
u |
a |
u |
a |
u |
|
g |
1984 |
|
u |
P |
u |
a |
u |
a |
g |
1985 |
P |
u |
a |
u |
a |
u |
|
g |
1986 |
P |
u |
P |
u |
a |
u |
P |
g |
1987 |
a |
u |
a |
u |
a |
u |
P |
u |
1988 |
P |
u |
P |
u |
P |
u |
a |
g |
1989 |
P |
u |
a |
u |
P |
u |
P |
g |
1990 |
a |
u |
P |
u |
a |
u |
P |
g |
1991 |
P |
u |
P |
u |
a |
u |
|
u |
1992 |
P |
u |
P |
u |
P |
u |
|
u |
1993 |
P |
u |
a |
u |
a |
u |
P |
u |
1994 |
a |
g |
|
u |
|
u |
|
u |
1995 |
P |
g |
a |
u |
P |
u |
|
g |
1996 |
|
u |
|
u |
|
u |
|
u |
1997 |
a |
u |
|
u |
|
u |
a |
u |
1998 |
|
g |
|
u |
|
u |
|
g |
1999 |
a |
g |
|
u |
a |
u |
|
g |
2000 |
a |
u |
a |
u |
P |
u |
a |
u |
2001 |
a |
g |
a |
u |
a |
u |
a |
u |
2002 |
a |
g |
P |
u |
P |
u |
a |
g |
Table 3 Record of individual orchis plants. P = present, a = not found, u = un-grazed, g = grazed, blank = no recording carried out at this site. These records are of single isolated plants. They are considered to be single individuals but could possibly be an individual followed by a single offspring in the same place.
In the grazed paddocks the proportion of each species has remained fairly constant: common spotted 38%, pyramidal 53%, twayblade 9%, and greater butterfly just over 0%. The figures for the un-grazed paddock are common spotted 86%, pyramidal 3%, twayblade 0%, and greater butterfly 11% but this is a bit more variable as the numbers are much lower. However, the proportions are constant enough to be able to analyse the records as a group for the grazed paddocks and the un-grazed paddock. The adjusted numbers in each case are plotted in Figures 3 and 4. This indicates an annual growth rate of 6.6% in the grazed paddocks and zero in the un-grazed paddock. Derived figures from the trend line are :- grazed paddocks 1981 - 151, 2002 - 589 un-grazed paddock 1981 and 2002 - 54.

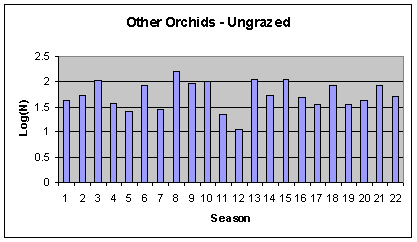

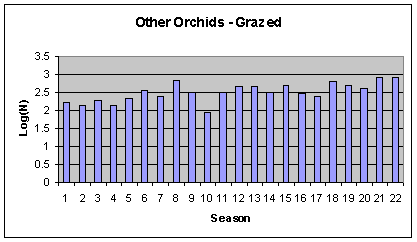

Fig. 3. Other Orchids in grazed paddocks 1981 to 2002 | Fig. 4. Other Orchids in ungrazed paddocks 1981 to 2002 |

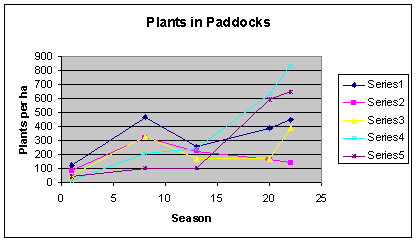

PADDOCK SERIAL NUMBER below |
||||||
|
1(N) |
2 |
3 |
4 |
5(S) |
TOTAL |
YEAR |
|
|
|
|
|
|
1981 |
99 |
43 |
41 |
8 |
35 |
|
1988 |
392 |
159 |
272 |
139 |
89 |
|
1993 |
213 |
113 |
140 |
161 |
85 |
|
2001 |
322 |
83 |
140 |
422 |
503 |
|
2002 |
373 |
68 |
322 |
561 |
548 |
|
NUMBER OF PLANTS (above) |
||||||
|
|
|
|
|
|
|
AREA |
0.839 |
0.5 |
0.833 |
0.674 |
0.849 |
|
|
|
|
|
|
|
|
YEAR |
|
|
|
|
|
|
1981 |
118 |
86 |
49 |
12 |
41 |
306 |
1988 |
467 |
318 |
327 |
206 |
105 |
1423 |
1993 |
254 |
226 |
168 |
239 |
100 |
987 |
2001 |
384 |
166 |
168 |
626 |
592 |
1936 |
2002 |
445 |
136 |
387 |
832 |
645 |
2445 |
PLANTS PER HECTARE (Above) |
||||||
Table 2 Distribution of all plants except bee orchids |
Fig. 5. Density per Paddock |
References:
LANG, D. C. 2001 A new variant of Ophrys apifera in Britain. BSBI News 88 41-43. | |
STACE, H. E. and DIXON, T. E. 1994 Allium oleraceum. Scarce Plants in
Britain. |
